Why Can the Same HPMC Have Different Viscosity Test Results?

A buyer receives an HPMC sample labeled 100,000 mPa·s.

The supplier's Certificate of Analysis shows a viscosity close to the specified range.

However, when the customer tests the same sample in their own laboratory, the result may be different.

Does this automatically mean that the HPMC specification is incorrect?

Not necessarily.

For Hydroxypropyl Methylcellulose (HPMC), a viscosity value is meaningful only when the test conditions and test method are defined.

The measured result may be influenced by:

• solution concentration;

• test temperature;

• viscometer type;

• spindle;

• rotational speed;

• sample preparation;

• hydration time;

• entrapped air;

• water quality.

Therefore, comparing two HPMC products only by the number printed next to “viscosity” can sometimes lead to an incorrect conclusion.

1. What Does HPMC Viscosity Actually Mean?

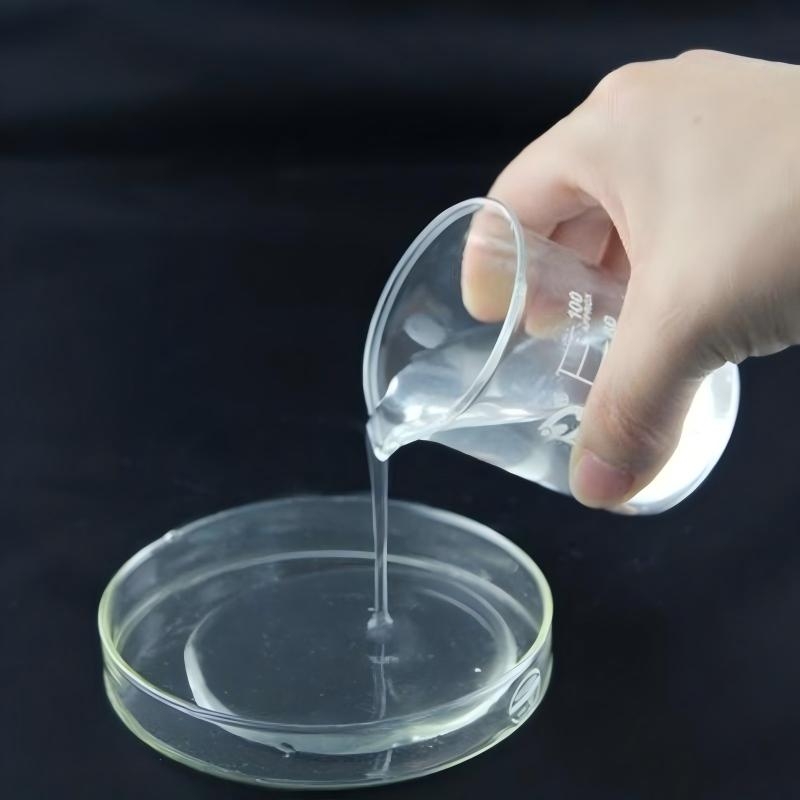

When HPMC is dispersed and hydrated in water, it forms a solution with characteristic rheological behavior.

Viscosity is used as one parameter to describe this behavior.

However:

HPMC does not have one viscosity value independent of test conditions.

The reported value corresponds to a defined measurement procedure.

For example, changing solution concentration or measurement conditions may produce a different numerical result from the same HPMC sample.

This is why a technical specification should ideally be read together with the corresponding test method.

2. Why Is Solution Concentration Important?

Solution concentration can have a substantial influence on measured viscosity.

An HPMC solution prepared at one concentration should not be directly compared with a result obtained at another concentration.

As polymer concentration increases, interactions between hydrated polymer chains also change.

Consequently, the measured viscosity can change considerably.

Therefore, before comparing two reports, first check:

Were both HPMC samples tested at the same solution concentration?

If not, the two numbers may not represent an equivalent comparison.

3. Why Does Test Temperature Matter?

Temperature affects the rheological behavior of HPMC solutions.

If one laboratory measures the sample at one temperature while another uses a different temperature, their results may differ.

Even when the same viscometer is used, temperature control remains important.

For comparative testing, samples should therefore be measured under the same specified temperature conditions.

This is particularly relevant when a buyer is checking whether an incoming HPMC batch corresponds to an approved sample.

4. Does the Type of Viscometer Matter?

Yes.

Different viscosity measurement systems may use different measurement principles and operating conditions.

For example, rotational viscometers are commonly used for polymer solutions, but the reported result can depend on the instrument configuration.

A viscosity result should therefore not be interpreted only as:

“100,000 mPa·s”

The more useful question is:

“100,000 mPa·s measured by which method and under what conditions?”

5. Why Do Spindle and Rotational Speed Matter?

In rotational viscosity measurement, the selected spindle and rotational speed influence the measurement conditions.

HPMC solutions can show non-Newtonian rheological behavior.

This means the apparent viscosity may depend on the applied shear conditions.

Therefore, changing:

• spindle;

• rotational speed;

• instrument configuration

may produce a different reading even when the sample itself has not changed.

For repeatable quality-control testing, these conditions should be standardized.

6. Is Brookfield Viscosity the Same as Every Other HPMC Viscosity Value?

Not automatically.

“Brookfield viscosity” refers to a measurement obtained using a Brookfield-type rotational viscometer under specified conditions.

Another method may generate a different numerical result.

Therefore, a buyer should not assume that:

100,000 mPa·s by Method A = 100,000 mPa·s by Method B

unless the methods and their comparability have been established.

When evaluating supplier specifications, the measurement method should be confirmed.

7. Why Does Sample Preparation Matter?

Before viscosity can be measured, HPMC needs to be properly dispersed and hydrated.

Poor sample preparation may produce:

• lumps;

• partially hydrated particles;

• uneven concentration;

• entrapped air;

• inconsistent solution structure.

These problems can affect the measurement.

Therefore, viscosity testing begins before the sample is placed in the viscometer.

A standardized preparation procedure is part of obtaining comparable results.

8. What Happens If HPMC Forms Lumps?

If HPMC is added to water too quickly or is not dispersed correctly, the outside of an agglomerate may hydrate while dry powder remains inside.

The result can be a solution that is not fully homogeneous.

Testing this solution may not represent the intended sample concentration accurately.

If visible lumps remain, the preparation method should be reviewed before drawing conclusions about product viscosity.

9. Why Is Hydration Time Important?

HPMC does not necessarily reach its final solution condition immediately after powder disappears from view.

Dispersion, hydration and viscosity development take time.

The required period depends on factors such as:

• HPMC grade;

• concentration;

• temperature;

• particle characteristics;

• sample preparation procedure.

Therefore, testing one sample immediately and another after a different hydration period can introduce unnecessary variation.

10. Can Air Bubbles Affect the Test?

They can.

Mechanical stirring can introduce air into an HPMC solution.

Because the hydrated solution has increased viscosity, entrapped bubbles may take time to escape.

If the sample contains significant air during measurement, the test result may become less representative.

Sample preparation should therefore aim to minimize unnecessary air incorporation and follow the specified conditioning procedure.

11. Does Water Quality Matter?

Water used for laboratory preparation should also be controlled.

Differences in:

• dissolved salts;

• hardness;

• pH;

• other dissolved substances

may influence polymer solution behavior to varying degrees.

For routine incoming quality control, using a consistent water source and standardized preparation method helps reduce variation unrelated to the HPMC itself.

12. Why Can Two Laboratories Get Different Results from the Same HPMC?

Suppose Laboratory A and Laboratory B test exactly the same batch.

Laboratory A uses:

• one solution concentration;

• one temperature;

• one spindle;

• one rotational speed;

• one hydration procedure.

Laboratory B changes several of these conditions.

The resulting numbers may differ even though both laboratories tested the same material.

Before concluding that one result is “wrong,” compare the test procedures.

13. What Should Buyers Ask When a Supplier Says “HPMC 100,000”?

“100,000 viscosity” alone is incomplete information.

A buyer can ask:

• What is the viscosity test method?

• What solution concentration is used?

• At what temperature is it tested?

• What instrument is used?

• What is the specified viscosity range?

• Is the same method used for every batch?

This gives more useful information than comparing only nominal viscosity grades.

14. Is HPMC 100,000 Exactly 100,000 mPa·s?

Usually, commercial viscosity grades should be understood together with the supplier's specification range and test method.

A grade described as “100,000” should not automatically be interpreted as requiring every batch to produce exactly 100,000 mPa·s under every possible test condition.

The relevant question is whether the batch meets the agreed specification when measured according to the defined method.

15. Why Can Two “100,000 mPa·s HPMC” Products Behave Differently?

This is particularly important for construction customers.

Two HPMC products may carry similar nominal viscosity grades but still differ in other characteristics.

Possible variables include:

• substitution characteristics;

• particle properties;

• surface treatment;

• moisture;

• product modification;

• rheological behavior.

As a result, nominal viscosity alone does not establish that two products will behave identically in mortar.

16. Does Higher HPMC Viscosity Always Mean Better Water Retention?

No universal conclusion should be made from viscosity alone.

Water retention in cement-based materials is influenced by more than the nominal viscosity grade.

Factors can include:

• HPMC characteristics;

• dosage;

• mortar composition;

• water-to-binder ratio;

• sand grading;

• temperature;

• substrate absorption.

Therefore, viscosity and water retention should be evaluated as related but distinct formulation considerations.

17. Does Higher Viscosity Always Mean Better Tile Adhesive?

No.

A tile adhesive formulation has multiple performance requirements.

Depending on the formulation, HPMC can influence:

• consistency;

• water retention;

• application behavior;

• open-time-related behavior;

• sag-related behavior.

Increasing nominal viscosity does not automatically improve all of these properties.

The HPMC grade should be evaluated within the complete tile adhesive formulation.

18. Laboratory Viscosity vs Mortar Performance: What Is the Difference?

This distinction is important.

Laboratory viscosity test

Measures an HPMC solution under defined laboratory conditions.

Mortar application test

Evaluates HPMC as one component in a formulation containing materials such as:

• cement;

• sand;

• filler;

• redispersible polymer powder;

• starch ether;

• other additives.

The two tests answer different questions.

A viscosity test is useful for product identification and quality control.

A mortar test is needed to evaluate application suitability.

19. Can a Higher-Viscosity Sample Produce a Different Mortar Result Than Expected?

Yes.

Because mortar behavior depends on the entire formulation, the ranking observed in a simple aqueous viscosity test does not necessarily predict every application characteristic.

This is why selecting construction-grade HPMC only from a viscosity number can be insufficient.

Laboratory specification testing and formulation testing should complement each other.

20. How Should Two HPMC Samples Be Compared?

For a meaningful comparison, keep the test conditions consistent.

Use the same:

water + concentration + temperature + preparation method + hydration time + instrument + spindle + rotational speed

Then compare the results.

For construction applications, continue with the same mortar formulation and compare application-related properties under controlled conditions.

This creates two levels of evaluation:

HPMC specification comparison → actual formulation comparison

21. How Should Incoming HPMC Be Checked?

A construction-material producer may establish an incoming quality-control procedure according to its own requirements.

Depending on the agreed specification, checks may include:

• appearance;

• moisture;

• viscosity;

• ash-related parameters where relevant;

• other agreed technical indicators.

The test method should remain consistent from batch to batch.

This makes historical data more useful.

22. Why Is Batch-to-Batch Comparison More Useful Than One Isolated Test?

One isolated viscosity result provides limited information.

A series of results from multiple batches can help identify whether the material remains within the agreed specification range.

For example, a customer can record:

batch number → viscosity → moisture → application test → production result

Over time, this creates a more useful quality-control record than simply deciding whether one sample “looks good.”

23. What Should You Do If Your Result Does Not Match the COA?

Do not immediately conclude that the batch is defective.

First compare:

1. solution concentration;

2. water used;

3. preparation method;

4. hydration time;

5. test temperature;

6. instrument;

7. spindle;

8. rotational speed.

If the methods are different, repeat the test using the agreed procedure.

If a meaningful difference remains under equivalent conditions, the supplier and buyer can then investigate the batch further.

24. Should HPMC Be Purchased Only by Viscosity Grade?

For construction applications, viscosity is an important specification, but it should not be the only purchasing criterion.

Buyers may also consider:

• intended application;

• water retention requirements;

• formulation behavior;

• product modification;

• surface treatment where relevant;

• batch consistency;

• technical documentation.

The appropriate combination depends on whether the HPMC is intended for tile adhesive, dry mix mortar, wall putty, gypsum-based materials or another formulation.

25. What Information Should Be Included in an HPMC Inquiry?

Instead of sending only:

“Need HPMC 100,000 viscosity.”

a buyer can provide:

Application: tile adhesive / dry mix mortar / wall putty / gypsum product
Required viscosity: target grade or existing specification
Test method: if already defined
Required quantity: sample or commercial order
Packaging: required packaging format
Destination: country and port

For customers replacing an existing HPMC grade, providing the current specification and application requirements can make sample selection more relevant.

Frequently Asked Questions

Why does my HPMC viscosity result differ from the supplier's COA?

Different solution concentration, temperature, instrument settings, hydration time or sample preparation procedures can produce different results. Compare the test methods before comparing the numbers.

Is 100,000 mPa·s HPMC always exactly 100,000 mPa·s?

A nominal viscosity grade should be interpreted together with its specification range and defined test method.

Does temperature affect HPMC viscosity measurement?

Yes. Temperature is one of the variables that should be controlled during comparative viscosity testing.

Does spindle speed affect HPMC viscosity?

It can. HPMC solutions may exhibit non-Newtonian behavior, so different measurement conditions can produce different apparent viscosity values.

Can two HPMC products with the same viscosity perform differently in mortar?

Yes. Nominal viscosity is only one characteristic. Other product characteristics and the complete mortar formulation can influence application behavior.

Is higher viscosity HPMC always better?

No. The appropriate viscosity depends on the formulation, application requirements and other raw materials.

How should two HPMC suppliers be compared?

First compare samples using the same laboratory test procedure. Then test both products in the same mortar formulation under controlled conditions.

HPMC Specification and Sample Evaluation

When sourcing Hydroxypropyl Methylcellulose for construction applications, viscosity should be evaluated together with the test method and actual formulation performance.

For sample comparison, buyers can provide:

application + required viscosity range + existing test method + formulation requirements + quantity + destination

For supplier replacement, testing the new HPMC under the same laboratory and mortar conditions as the existing grade can provide a more meaningful basis for evaluation.
